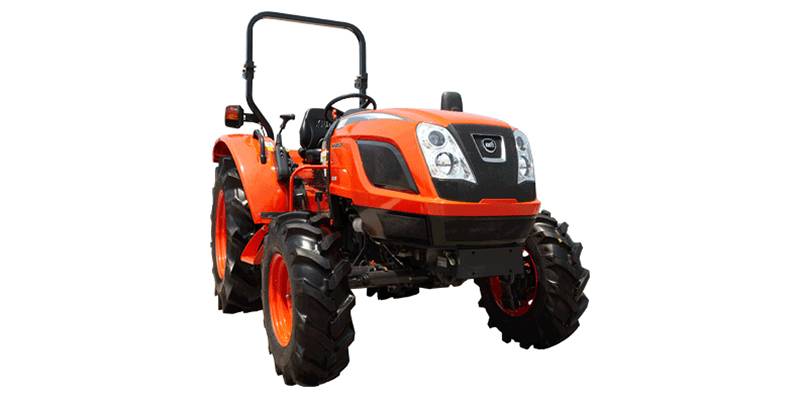

KIOTI NX Series 5010 HST

Stock #3AD53
Stock Photos - Actual Images Coming Soon

87 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2023 KIOTI NX Series 5010 HST . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:
    2023 KIOTI NX Series 5010 HST
  • VIN:
    PW13A0046
  • Model Number:
    NX5010 HST
  • Fuel Type:
    Gasoline
  • Transmission:
    Manual
  • Color:
    Orange
  • Stock Number:
    3AD53
  • Title:
    Clear
  • Location:
    ATVs and More
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Wet Disc
  • Rear Brake Type:
    Wet Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    4X4

ENGINE

  • Aspiration:
    Turbocharged
  • Bore (in):
    3.43
  • Bore (mm):
    87
  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    3
  • Displacement (ci):
    111.4
  • Displacement (l):
    1.8
  • Engine Brand Name:
    Daedong
  • Engine Model Code:
    3F183T
  • Fuel Type:
    Diesel
  • Horsepower (bhp):
    50
  • Horsepower (kW):
    37.3
  • Horsepower RPM:
    2600
  • Stroke (in):
    4.03
  • Stroke (mm):
    102.4
  • Torque (Ft Lbs):
    133.8
  • Torque (Nm):
    181.4
  • Torque RPM:
    1700

EXTERIOR

  • Platform Layout:
    Open

HYDRAULIC SYSTEM

  • Number of Optional Remote Valves:
    1
  • Number of Standard Remote Valves:
    1
  • Pump Capacity (gpm):
    17.9
  • Pump Capacity (lpm):
    67.6
  • Rear 3-Point Hitch Category:
    Category 1
  • Rear 3-Point Hitch Lift Capacity (kgs):
    1441
  • Rear 3-Point Hitch Lift Capacity (lbs):
    3177

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

PTO

  • PTO Horsepower (bhp):
    38.9
  • PTO Horsepower (kW):
    29
  • PTO Location(s):
    Rear
  • PTO Type:
    Independent
  • Rear PTO RPM:
    540

STEERING

  • Steering Type:
    Power

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    1814.4
  • Dry Weight (lbs):
    4000
  • Front Tread Width (in):
    55.2
  • Front Tread Width (mm):
    1352
  • Fuel Capacity (gal):
    14.8
  • Fuel Capacity (l):
    56
  • Ground Clearance (in):
    13.7
  • Ground Clearance (mm):
    350
  • Height (in):
    103.1
  • Height (mm):
    2618
  • Length (ft):
    11.63
  • Length (ft/ft):
    11
  • Length (ft/in):
    7.6
  • Length (in):
    139.6
  • Length (mm):
    3547
  • Rear Tread Width (in):
    52.1
  • Rear Tread Width (mm):
    1324
  • Turning Radius (ft):
    9.8
  • Turning Radius (m):
    3
  • Wheelbase (in):
    75.6
  • Wheelbase (mm):
    1920
  • Width (in):
    65.6
  • Width (mm):
    1665

TRANSMISSION

  • Clutch Type:
    Not Applicable
  • Maximum Forward Speed (kph):
    26.6
  • Maximum Forward Speed (mph):
    16.5
  • Number of Ranges:
    3
  • Transmission Type:
    Hydrostatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    8 x 16
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    16
  • Rear Tire (Full Spec):
    13.6 x 24
  • Rear Tire Width:
    13.6
  • Rear Wheel Diameter:
    24
  • Tread Type:
    Agricultural
  • Wheels Composition:
    Steel
