2023 KTM

Stock #2AT98
MSRP: $6,549 USD
Check Availability
Hi, my name is and I'm interested in this 2023 KTM 85 SX 1714 . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:

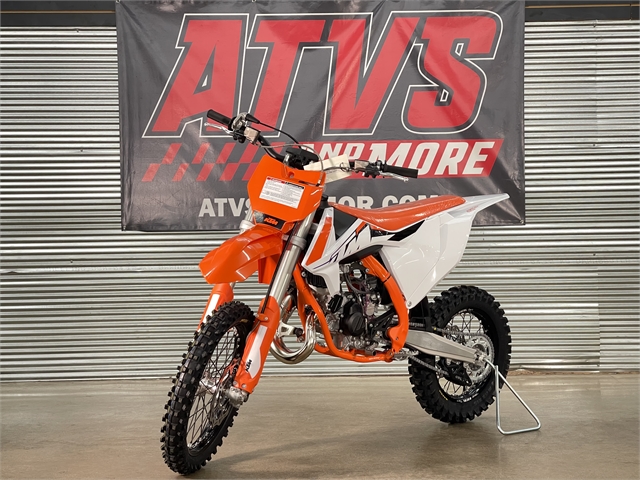

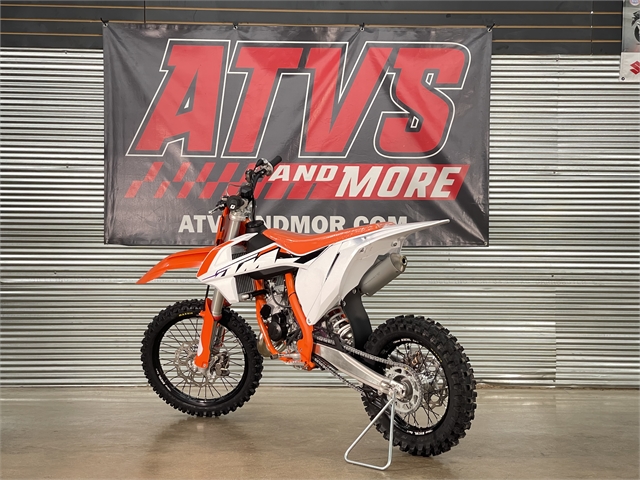

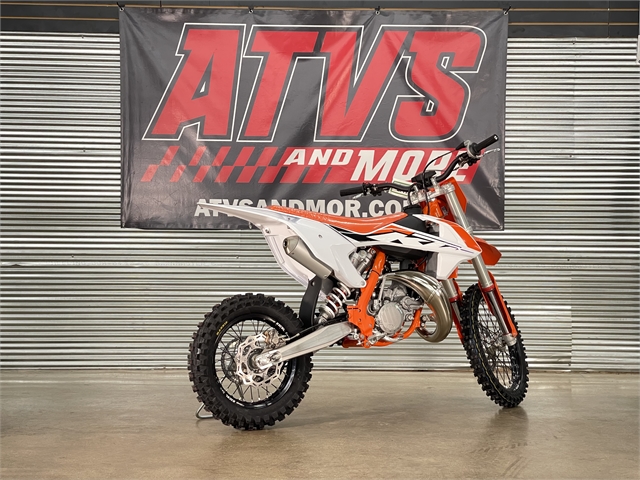

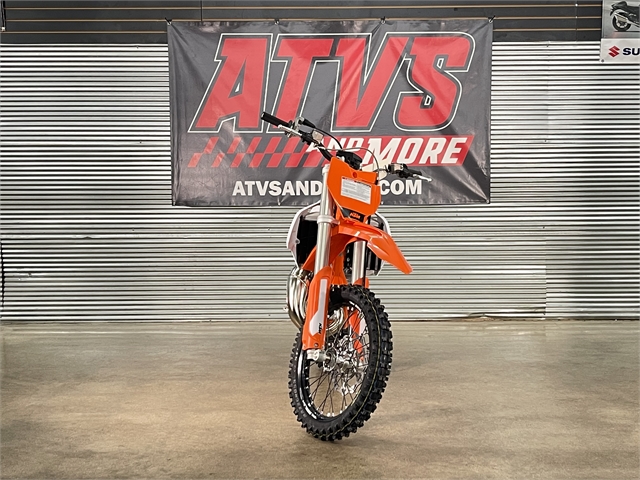

    2023 KTM 85 SX 1714
  • VIN:
    VBKMRC236PM056414
  • Color:
    Orange
  • Stock Number:
    2AT98
  • Title:
    Clear
  • Location:
    ATVs and More
  • Warranty:
    Not Specified

BRAKES

  • Brake Brand Name:
    Formula
  • Front Brake Diameter (in):
    9.4
  • Front Brake Diameter (mm):
    240
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.7
  • Rear Brake Diameter (mm):
    220
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    1.85
  • Bore (mm):
    47
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    38
  • Carburetor:
    Yes
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    84.9
  • Displacement (ci):
    5.2
  • Engine Stroke:
    2-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas / Oil Premix
  • Number Of Carburetors:
    1
  • Starter:
    Kick
  • Stroke (in):
    1.93
  • Stroke (mm):
    49
  • Valve Configuration:
    Reed Valve

EXTERIOR

  • Body Material:
    Plastic
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Chromium Molybdenum
  • Radiator Cover:
    Yes
  • Stand Type:
    Kick

SEATS

  • Adjustable:
    Yes
  • Number Of Seats:
    1
  • Seat Height (in):
    33.5
  • Seat Height (mm):
    850
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    WP XACT
  • Front Suspension Size (in):
    1.7
  • Front Suspension Size (mm):
    43
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    10.9
  • Front Travel (mm):
    278
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    WP XACT
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    12
  • Rear Travel (mm):
    305

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    67
  • Dry Weight (lbs):
    147.7
  • Engine Displacement to Weight (cc):
    0.57
  • Fuel Capacity (gal):
    1.4
  • Fuel Capacity (l):
    5.2
  • Ground Clearance (in):
    13.2
  • Ground Clearance (mm):
    336
  • GVWR (kgs):
    75
  • GVWR (lbs):
    165
  • Wheelbase (in):
    50.8
  • Wheelbase (mm):
    1290

TRANSMISSION

  • Final Drive Ratio:
    3.29
  • Gear Ratio (1):
    2.64
  • Gear Ratio (2):
    2
  • Gear Ratio (3):
    1.63
  • Gear Ratio (4):
    1.37
  • Gear Ratio (5):
    1.19
  • Gear Ratio (6):
    1.05
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Gear
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® MX-ST 70/100 R17 40M
  • Front Tire Aspect Ratio:
    100
  • Front Tire Speed Rating:
    M
  • Front Tire Width:
    70
  • Front Wheel Diameter:
    17
  • Front Wheel Width (in):
    1.4
  • Rear Tire (Full Spec):
    Maxxis® MX-ST 90/100 R14 49M
  • Rear Tire Aspect Ratio:
    100
  • Rear Tire Speed Rating:
    M
  • Rear Tire Width:
    90
  • Rear Wheel Diameter:
    14
  • Rear Wheel Width (in):
    1.6
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
