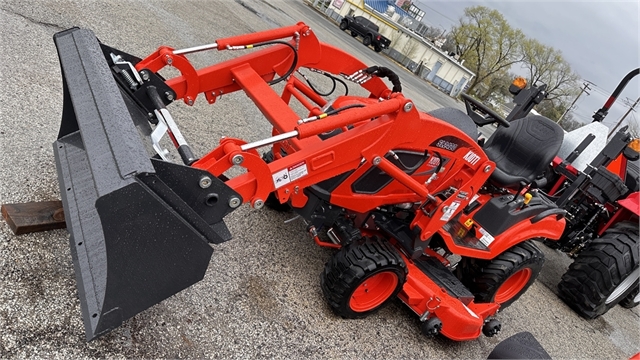

KIOTI CS Series 2520

Stock #4AD39
MSRP: $20,932 USD
Discount: $5,933
Your Price: $14,999 USD

253 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2024 KIOTI CS Series 2520 . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:
    2024 KIOTI CS Series 2520
  • VIN:
    RY88M0289
  • Model Number:
    CS2520
  • Fuel Type:
    Gasoline
  • Transmission:
    Manual
  • Color:
    Orange
  • Stock Number:
    4AD39
  • Title:
    Clear
  • Location:
    ATVs and More
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Wet Disc
  • Rear Brake Type:
    Wet Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    4X4

ENGINE

  • Aspiration:
    Natural
  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    3
  • Displacement (ci):
    61.5
  • Displacement (l):
    1.1
  • Engine Brand Name:
    Daedong
  • Engine Model Code:
    3C100LFH-U2
  • Fuel Type:
    Diesel
  • Horsepower (bhp):
    24.5
  • Horsepower (kW):
    18.3
  • Horsepower RPM:
    3200

EXTERIOR

  • Platform Layout:
    Open

HYDRAULIC SYSTEM

  • Number of Optional Remote Valves:
    1
  • Pump Capacity (gpm):
    7
  • Pump Capacity (lpm):
    26.4
  • Rear 3-Point Hitch Category:
    Category 1
  • Rear 3-Point Hitch Lift Capacity (kgs):
    318
  • Rear 3-Point Hitch Lift Capacity (lbs):
    700

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

PTO

  • Mid PTO RPM:
    2200
  • PTO Horsepower (bhp):
    18.5
  • PTO Horsepower (kW):
    13.9
  • PTO Location(s):
    Rear / Mid
  • PTO Type:
    Independent
  • Rear PTO RPM:
    540

STEERING

  • Steering Type:
    Power

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    705
  • Dry Weight (lbs):
    1554
  • Front Tread Width (in):
    45.9
  • Front Tread Width (mm):
    1168
  • Fuel Capacity (gal):
    6.7
  • Fuel Capacity (l):
    25.5
  • Ground Clearance (in):
    6.4
  • Ground Clearance (mm):
    162
  • Height (in):
    88
  • Height (mm):
    2226
  • Length (ft):
    8.28
  • Length (ft/ft):
    8
  • Length (ft/in):
    3.3
  • Length (in):
    99.3
  • Length (mm):
    2523
  • Rear Tread Width (in):
    45.9
  • Rear Tread Width (mm):
    1168
  • Turning Radius (ft):
    8.2
  • Turning Radius (m):
    2.54
  • Wheelbase (in):
    55.1
  • Wheelbase (mm):
    1400
  • Width (in):
    45.9
  • Width (mm):
    1168

TRANSMISSION

  • Clutch Type:
    Wet
  • Maximum Forward Speed (kph):
    15.4
  • Maximum Forward Speed (mph):
    9.57
  • Number of Ranges:
    2
  • Transmission Type:
    Hydrostatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    18 x 8.5 -10
  • Front Tire Width:
    8.5
  • Front Wheel Diameter:
    10
  • Front Wheel Width (in):
    18
  • Rear Tire (Full Spec):
    26 x 12.00 -12
  • Rear Tire Width:
    12
  • Rear Wheel Diameter:
    12
  • Rear Wheel Width (in):
    26
  • Tread Type:
    Agricultural
  • Wheels Composition:
    Steel
