2024
Yamaha
Grizzly 90
Stock #4AY208
MSRP: $3,399 USD
‹
›
Reset Zoom
X
‹
›
-
+
‹
›
Check Availability
Hi, my name is
First Name
Last Name
and I'm interested in this

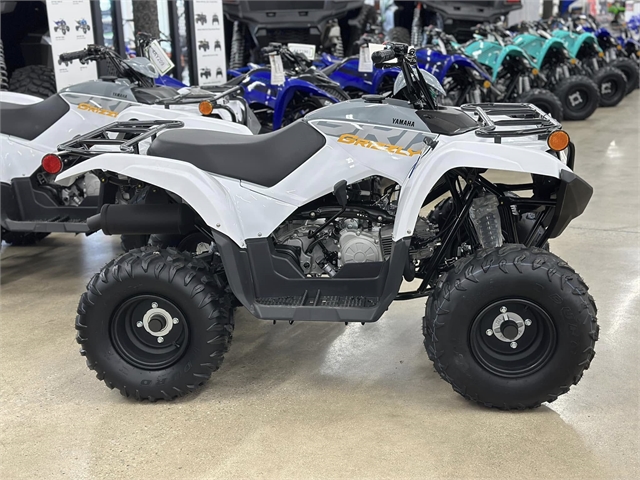

2024 Yamaha Grizzly 90
. I'm in the
Zip Code
area and you can reach me at
Email
or by phone at
Phone
Is this unit still available?
What payment terms are available?
When can I test ride this unit?
Phone
MarketingName
HarleyName
SubModel
SubscriberId
SubscriptionId
VehicleId
Year
ModelName
MakeDivision
ReturnURL
EPriceForm
InstantPrice
CampaignName
CampaignType
Submit
Details
Status:
New
Vehicle:
2024 Yamaha Grizzly 90
VIN:
RF3AB13E3RT010088
Mileage:
1 miles
Fuel Type:
Gasoline
Transmission:
Manual
Color:
White / Armour Grey
Stock Number:
4AY208
Title:
Clear
Location:
ATVs and More
Warranty:
Manufacturer's w/ Extended Available
Specifications
BRAKES
Front Brake Type:
Dual Sealed Drum
Rear Brake Type:
Sealed Drum
DRIVE LINE
Driveline Type:
4X2
Number Of Driveline Modes:
1
Rear Solid Axle:
Yes
ENGINE
Bore (in):
1.85
Bore (mm):
47
Carburetion Type:
Carburetor
Carburetor Size (mm):
13
Carburetor:
Yes
Compression Ratio:
9.2
Cooling:
Air
Cylinders:
1
Displacement (cc):
90
Displacement (ci):
5.5
Engine Stroke:
4-Stroke
Engine Type:
Single-Cylinder
Fuel Requirements:
Regular
Fuel Type:
Gas
Number Of Carburetors:
1
Speed Governor:
Yes
Starter:
Electric / Kick
Stroke (in):
2.04
Stroke (mm):
51.8
Valve Configuration:
SOHC
Valves Per Cylinder:
2
Valves:
2
EXTERIOR
Bash Plate (Front):
Yes
Body Material:
Plastic
Brush Guard:
Yes
Floor Board Location:
Driver
Frame:
Steel
LIGHTS
Type:
Halogen
SEATS
Number Of Seats:
1
Seat Height (in):
28.7
Seat Height (mm):
729
Seat Location:
Driver
Seat Material:
Vinyl
Seat Type:
One-Piece
STEERING
Steering Control:
Handlebar
Steering Type:
Manual
SUSPENSION
Front Suspension Type:
A-Arm
Front Travel (in):
5
Front Travel (mm):
127
Number Rear Shock Absorbers:
1
Rear Suspension Type:
Swing Arm
Rear Travel (in):
5.7
Rear Travel (mm):
144.8
TECHNICAL SPECIFICATIONS
Engine Displacement to Weight (cc):
0.29
Fuel Capacity (gal):
1.7
Fuel Capacity (l):
6.4
Ground Clearance (in):
4.1
Ground Clearance (mm):
104.1
Height (in):
39.6
Height (mm):
1005.8
Length (ft):
5.12
Length (ft/ft):
5
Length (ft/in):
1.5
Length (in):
61.5
Length (mm):
1562.1
Wet Weight (kg):
139.7
Wet Weight (lbs):
308
Wheelbase (in):
40.6
Wheelbase (mm):
1031.2
Width (in):
40.6
Width (mm):
1031.2
TRANSMISSION
Primary Drive (Rear Wheel):
Chain
Reverse:
Yes
Transmission Type:
Continuously Variable (CVT)
WHEELS & TIRES
Front Tire (Full Spec):
AT 19 X 7-8
Front Tire Diameter (in):
19
Front Tire Width:
7
Front Wheel Diameter:
8
Rear Tire (Full Spec):
AT 18 X 9-8
Rear Tire Diameter (in):
18
Rear Tire Width:
9
Rear Wheel Diameter:
8
Tube / Tubeless:
Tubeless
Wheels Composition:
Steel
