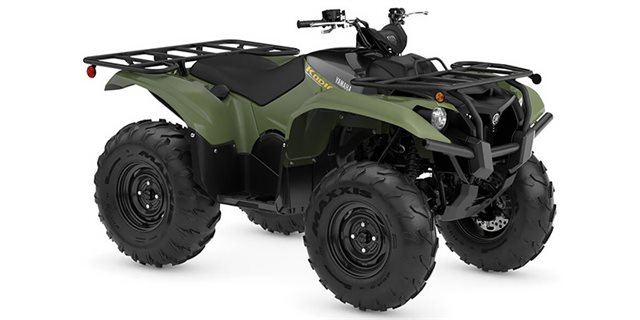

2024 Yamaha Kodiak 700

Stock #4AY176
MSRP: $8,499 USD
Discount: $2,040
Your Price: $6,459 USD

136 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2024 Yamaha Kodiak 700 . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:
    2024 Yamaha Kodiak 700
  • VIN:
    5Y4AMJ7E0RA103773
  • Mileage:
    1 miles
  • Fuel Type:
    Gasoline
  • Transmission:
    Manual
  • Color:
    Tactical Green
  • Stock Number:
    4AY176
  • Title:
    Clear
  • Location:
    ATVs and More
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Sealed Oil Bath Multi-Disc

DRIVE LINE

  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    4.02
  • Bore (mm):
    102
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.0
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    686
  • Displacement (ci):
    41.8
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    44
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    3.31
  • Stroke (mm):
    84
  • Valve Configuration:
    SOHC

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Bash Plate (Rear):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Driver
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    33.9
  • Seat Height (mm):
    861.1
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

STORAGE

  • Capacity (kgs):
    49.9
  • Capacity (kgs):
    89.8
  • Capacity (lbs):
    110
  • Capacity (lbs):
    198

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    7.1
  • Front Travel (mm):
    180.3
  • Number Rear Shock Absorbers:
    2
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    9.1
  • Rear Travel (mm):
    231.1

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    1.04
  • Fuel Capacity (gal):
    4.8
  • Fuel Capacity (l):
    18.2
  • Ground Clearance (in):
    10.8
  • Ground Clearance (mm):
    274.3
  • Height (in):
    48.8
  • Height (mm):
    1239.5
  • Length (ft):
    6.79
  • Length (ft/ft):
    6
  • Length (ft/in):
    9.5
  • Length (in):
    81.5
  • Length (mm):
    2070.1
  • Payload Capacity (kgs):
    139.7
  • Payload Capacity (lbs):
    308
  • Towing Capacity (kgs):
    599.7
  • Towing Capacity (lbs):
    1322
  • Turning Radius (ft):
    10.5
  • Wet Weight (kg):
    298.9
  • Wet Weight (lbs):
    659
  • Wheelbase (in):
    49.2
  • Wheelbase (mm):
    1249.7
  • Width (in):
    46.5
  • Width (mm):
    1181.1

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    UltraMatic™
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® AT25 x 8 - 12 MU19
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® AT25 x 10 - 12 MU20
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
