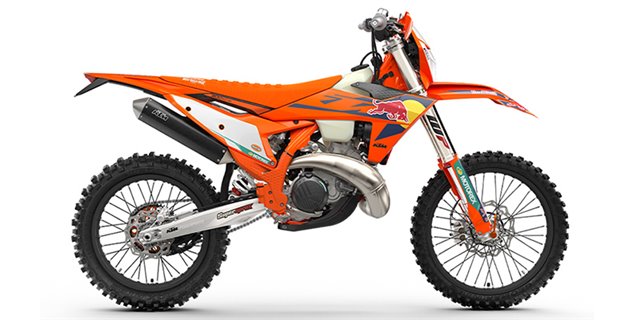

2025 KTM 300 XC-W Champion Edition

Stock #4AT184
MSRP: $12,099 USD

115 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2025 KTM XC 300 XC-W Champion Edition . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:
    2025 KTM 300 XC-W Champion Edition
  • VIN:
    VBKXWK233SM308130
  • Model Number:
    #F7475Y5CE
  • Fuel Type:
    Gasoline
  • Transmission:
    Manual
  • Color:
    Orange / Red / White
  • Stock Number:
    4AT184
  • Title:
    Clear
  • Location:
    ATVs and More
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Diameter (in):
    10.2
  • Front Brake Diameter (mm):
    260
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.7
  • Rear Brake Diameter (mm):
    220
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    2.83
  • Bore (mm):
    72
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    13.2
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    293.2
  • Displacement (ci):
    17.9
  • Engine Stroke:
    2-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    39
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas / Oil Injected
  • Horsepower (bhp):
    49
  • Horsepower (kW):
    36.6
  • Starter:
    Electric
  • Stroke (in):
    2.83
  • Stroke (mm):
    72
  • Torque (Ft Lbs):
    32.3
  • Torque (Nm):
    43.8
  • Valve Configuration:
    Reed Valve

EXTERIOR

  • Body Material:
    Plastic
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Chromium Molybdenum
  • Hand Guards:
    Yes
  • Radiator Cover:
    Yes
  • Stand Type:
    Kick
  • Tank Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    1
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    WP XACT
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    48
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    11.8
  • Front Travel (mm):
    300
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    WP XPLOR
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    12.2
  • Rear Travel (mm):
    310

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    104.6
  • Dry Weight (lbs):
    230.6
  • Engine Displacement to Weight (cc):
    1.27
  • Fuel Capacity (gal):
    2.4
  • Fuel Capacity (l):
    9
  • Fuel Capacity Reserve (gal):
    0.4
  • Fuel Capacity Reserve (l):
    1.5
  • Wheelbase (in):
    58.6
  • Wheelbase (mm):
    1489

TRANSMISSION

  • Gear Ratio (1):
    2.29
  • Gear Ratio (2):
    1.63
  • Gear Ratio (3):
    1.25
  • Gear Ratio (4):
    1.05
  • Gear Ratio (5):
    0.88
  • Gear Ratio (6):
    0.77
  • Number Of Speeds:
    6
  • Overdrive:
    Yes
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Brand:
    Pankl
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® MX33 80/1000 R21
  • Front Tire Aspect Ratio:
    100
  • Front Tire Width:
    80
  • Front Wheel Diameter:
    21
  • Front Wheel Width (in):
    1.6
  • Rear Tire (Full Spec):
    Dunlop® AT81 110/100 R18
  • Rear Tire Aspect Ratio:
    100
  • Rear Tire Width:
    110
  • Rear Wheel Diameter:
    18
  • Rear Wheel Width (in):
    2.15
  • Tire Brand:
    Dunlop®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
