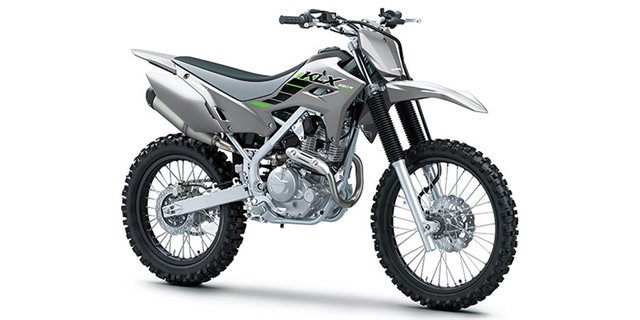

2025 Kawasaki KLX230R

Stock #4AK608
MSRP: $4,999 USD

99 people have recently viewed it.
Check Availability

Hi, my name is and I'm interested in this 2025 Kawasaki KLX KLX230R . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:
    2025 Kawasaki KLX230R
  • VIN:
    MH4LXEN14SJP00248
  • Model Number:
    KLX232NSFNL
  • Fuel Type:
    Gasoline
  • Transmission:
    Manual
  • Color:
    Battle Gray
  • Stock Number:
    4AK608
  • Title:
    Clear
  • Location:
    ATVs and More
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    9.4
  • Front Brake Diameter (mm):
    240
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.7
  • Rear Brake Diameter (mm):
    220
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    2.64
  • Bore (mm):
    67
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.4
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    233
  • Displacement (ci):
    14.2
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    32
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.6
  • Stroke (mm):
    66
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Body Material:
    Plastic
  • Chain Guard:
    Yes
  • Engine Case Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

INSTRUMENTATION

  • Fuel Level Warning Type:
    Light
  • Temperature Warning Type:
    Light

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    35.6
  • Seat Height (mm):
    905
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.5
  • Front Suspension Size (mm):
    37
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    9.8
  • Front Travel (mm):
    249
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    UNI-TRAK®
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    9.9
  • Rear Travel (mm):
    251.5

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    2
  • Fuel Capacity (l):
    7.6
  • Ground Clearance (in):
    11.4
  • Ground Clearance (mm):
    289.6
  • Height (in):
    47.2
  • Height (mm):
    1198.9
  • Length (ft):
    6.71
  • Length (ft/ft):
    6
  • Length (ft/in):
    8.5
  • Length (in):
    80.5
  • Length (mm):
    2044.7
  • Wet Weight (kg):
    119
  • Wet Weight (lbs):
    262.4
  • Wheelbase (in):
    54.1
  • Wheelbase (mm):
    1374.1
  • Width (in):
    33.3
  • Width (mm):
    845.8

TRANSMISSION

  • Number Of Speeds:
    6
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    80/100 - 21 (51M)
  • Front Tire Aspect Ratio:
    100
  • Front Tire Speed Rating:
    M
  • Front Tire Width:
    80
  • Front Wheel Diameter:
    21
  • Front Wheel Width (in):
    1.6
  • Rear Tire (Full Spec):
    100/100 - 18 (59M)
  • Rear Tire Aspect Ratio:
    100
  • Rear Tire Speed Rating:
    M
  • Rear Tire Width:
    100
  • Rear Wheel Diameter:
    18
  • Rear Wheel Width (in):
    1.85
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
