2025
Suzuki
KingQuad 500AXi Power Steering SE
Stock #4AS50
MSRP: $10,529 USD
‹
›
Reset Zoom
X
‹
›
-
+
‹
›
Check Availability
Hi, my name is
First Name
Last Name
and I'm interested in this
2025 Suzuki KingQuad 500 500AXi Power Steering SE
. I'm in the
Zip Code
area and you can reach me at
Email
or by phone at
Phone
Is this unit still available?
What payment terms are available?
When can I test ride this unit?
Phone
MarketingName
HarleyName
SubModel
SubscriberId
SubscriptionId
VehicleId
Year
ModelName
MakeDivision
ReturnURL
EPriceForm
InstantPrice
CampaignName
CampaignType
Submit
Details
Status:
New
Vehicle:

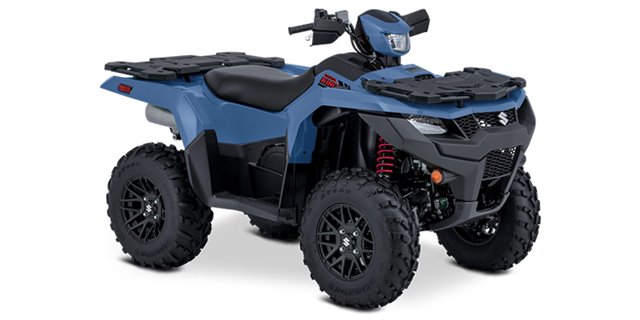

2025 Suzuki KingQuad 500AXi Power Steering SE
VIN:
5SADW21H8S7100070
Model Number:
LT-A500XPZM5
Mileage:
1 miles
Fuel Type:
Gasoline
Transmission:
Manual
Color:
Blue
Stock Number:
4AS50
Title:
Clear
Location:
ATVs and More
Warranty:
Manufacturer's w/ Extended Available
Specifications
BRAKES
Engine Braking Brand Name:
Engine Braking System
Front Brake Type:
Dual Hydraulic Disc
Rear Brake Type:
Sealed Oil Bath Multi-Disc
DRIVE LINE
Differential Lock Location:
Front
Driveline Type:
Selectable 4X2 / 4X4
Limited Slip Differential Location:
Front
Number Of Driveline Modes:
3
ENGINE
Bore (in):
3.4
Bore (mm):
87.5
Carburetion Type:
Fuel Injected
Compression Ratio:
9.9
Cooling:
Liquid
Cylinders:
1
Displacement (cc):
493
Displacement (ci):
30
Engine Stroke:
4-Stroke
Engine Type:
Single-Cylinder
Fuel Injector:
Yes
Fuel Requirements:
Regular
Fuel Type:
Gas
Starter:
Electric
Stroke (in):
3.2
Stroke (mm):
82
Valve Configuration:
SOHC
Valves Per Cylinder:
4
Valves:
4
EXTERIOR
A-Arm Skid Plate (Front):
Yes
A-Arm Skid Plate (Rear):
Yes
Bash Plate (Front):
Yes
Bash Plate (Rear):
Yes
Body Material:
Plastic
Floor Board Location:
Driver
Frame:
Steel
Full Length Skid Plate:
Yes
Hand Guards:
Yes
Radiator Guard:
Yes
INSTRUMENTATION
Fuel Level Warning Type:
Gauge
Temperature Warning Type:
Light
LIGHTS
Type:
Halogen
SEATS
Number Of Seats:
1
Seat Height (in):
37
Seat Height (mm):
940
Seat Location:
Driver
Seat Material:
Vinyl
Seat Type:
One-Piece
STEERING
Steering Control:
Handlebar
Steering Type:
Power
STORAGE
Fender Storage Location:
Front
SUSPENSION
Front Adjustable Fork Pre-Load:
Yes
Front Suspension Type:
Independent Double A-Arm
Front Travel (in):
6.7
Front Travel (mm):
170.2
Number Rear Shock Absorbers:
2
Rear Adjustable Shock / Spring Pre-Load:
Yes
Rear Stabilizer Bar:
Yes
Rear Suspension Type:
Independent Double A-Arm
Rear Travel (in):
7.7
Rear Travel (mm):
195.6
TECHNICAL SPECIFICATIONS
Fuel Capacity (gal):
4.6
Fuel Capacity (l):
17.5
Ground Clearance (in):
10.2
Ground Clearance (mm):
260
Height (in):
50.6
Height (mm):
1285
Length (ft):
7.05
Length (ft/ft):
7
Length (ft/in):
0.6
Length (in):
84.6
Length (mm):
2150
Storage Capacity (gal):
0.6
Storage Capacity (l):
2.8
Towing Capacity (kgs):
599.7
Towing Capacity (lbs):
1322
Wet Weight (kg):
322
Wet Weight (lbs):
710
Wheelbase (in):
50.6
Wheelbase (mm):
1285
Width (in):
47.8
Width (mm):
1215
TOWING & HAULING
Rear Hitch Type:
Receiver
TRANSMISSION
Hi / Low Range:
Yes
Primary Drive (Engine / Transmission):
Belt
Primary Drive (Front Wheel):
Shaft
Primary Drive (Rear Wheel):
Shaft
Reverse:
Yes
Transmission Brand:
Quadmatic™
Transmission Type:
Continuously Variable (CVT)
WHEELS & TIRES
Front Tire (Full Spec):
Carlisle AT 25 X 8-12
Front Tire Diameter (in):
25
Front Tire Width:
8
Front Wheel Diameter:
12
Rear Tire (Full Spec):
Carlisle AT 25 X 10-12
Rear Tire Diameter (in):
25
Rear Tire Width:
10
Rear Wheel Diameter:
12
Tire Brand:
Carlisle
Tube / Tubeless:
Tubeless
Wheels Composition:
Aluminum
