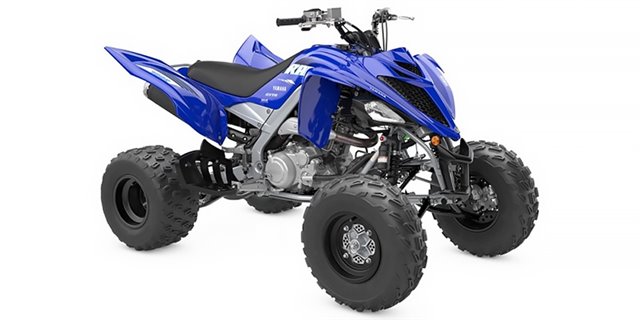

2025 Yamaha Raptor 700R

Stock #5AY47
MSRP: $10,299 USD
Check Availability
Hi, my name is and I'm interested in this 2025 Yamaha Raptor 700R . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:
    2025 Yamaha Raptor 700R
  • VIN:
    5Y4AML6E6SA111380
  • Model Number:
    YFM70RSCSL
  • Mileage:
    1 miles
  • Fuel Type:
    Gasoline
  • Transmission:
    Manual
  • Color:
    Team Yamaha Blue
  • Stock Number:
    5AY47
  • Title:
    Clear
  • Location:
    ATVs and More
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Driveline Type:
    4X2
  • Number Of Driveline Modes:
    1
  • Rear Solid Axle:
    Yes

ENGINE

  • Bore (in):
    4.02
  • Bore (mm):
    102
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.0
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    686
  • Displacement (ci):
    41.9
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    44
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    3.31
  • Stroke (mm):
    84
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Driver
  • Frame:
    Aluminum / Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Light
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    32.7
  • Seat Height (mm):
    830.6
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    9.1
  • Front Travel (mm):
    231.1
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    10.1
  • Rear Travel (mm):
    256.5

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    1.63
  • Fuel Capacity (gal):
    2.9
  • Fuel Capacity (l):
    11
  • Ground Clearance (in):
    9.5
  • Ground Clearance (mm):
    241.3
  • Height (in):
    43.9
  • Height (mm):
    1115.1
  • Length (ft):
    6.05
  • Length (ft/ft):
    6
  • Length (ft/in):
    0.6
  • Length (in):
    72.6
  • Length (mm):
    1844
  • Wet Weight (kg):
    191.4
  • Wet Weight (lbs):
    422
  • Wheelbase (in):
    50.4
  • Wheelbase (mm):
    1280.2
  • Width (in):
    45.5
  • Width (mm):
    1155.7

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Rear Wheel):
    Chain
  • Reverse:
    Yes
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® AT 22 X 7-10
  • Front Tire Diameter (in):
    22
  • Front Tire Width:
    7
  • Front Wheel Diameter:
    10
  • Rear Tire (Full Spec):
    Maxxis® AT 20 X 10-9
  • Rear Tire Diameter (in):
    20
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    9
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum
