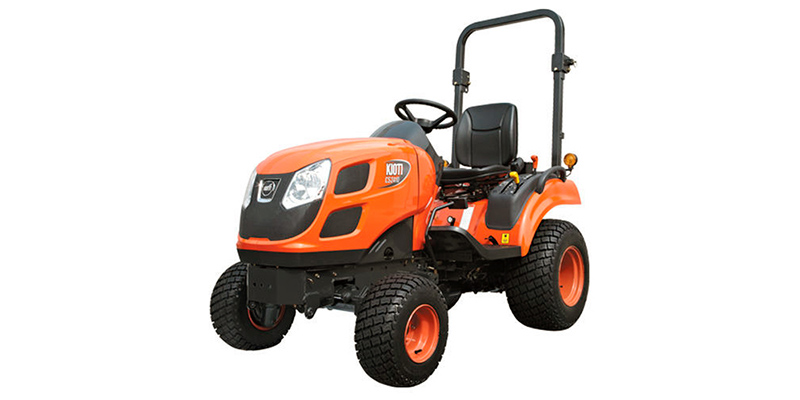

2025 KIOTI CS Series 2210

Check Availability
Hi, my name is and I'm interested in this 2025 KIOTI CS Series 2210 . I'm in the area and you can reach me at or by phone at .

Engine

  • Engine Brand Name:
    Daedong
  • Cylinders:
    3
  • Horsepower (bhp):
    21
  • Horsepower (kW):
    15.6
  • Horsepower RPM:
    3200
  • Cooling:
    Liquid
  • Bore (mm):
    77
  • Bore (in):
    3.03
  • Stroke (mm):
    81
  • Stroke (in):
    3.19
  • Displacement (ci):
    61.5
  • Compression Ratio:
    23:5
  • Fuel Type:
    Diesel
  • Displacement (l):
    1.1
  • Engine Model Code:
    3C100LWH-U3
  • Aspiration:
    Natural

Brakes

  • Front Brake Type:
    Wet Disc
  • Rear Brake Type:
    Wet Disc

Carburetion

  • Carburetion Type:
    Fuel Injected

Dimensions

  • Length (in):
    99.3
  • Length (mm):
    2523
  • Width (in):
    46.7
  • Width (mm):
    1185
  • Height (in):
    88
  • Height (mm):
    2226
  • Wheelbase (in):
    55.1
  • Wheelbase (mm):
    1400
  • Turning Radius (ft):
    8.2
  • Ground Clearance (in):
    6.4
  • Ground Clearance (mm):
    162
  • Front Tread Width (in):
    45.3
  • Front Tread Width (mm):
    1150
  • Rear Tread Width (in):
    46.7
  • Rear Tread Width (mm):
    1185
  • Length (ft):
    8.28
  • Length (ft/ft):
    8
  • Length (ft/in):
    3.3
  • Turning Radius (m):
    2.5

Other

  • Fuel Capacity (gal):
    6.7
  • Fuel Capacity (l):
    25.5
  • Differential Lock Location:
    Rear
  • Driveline Type:
    4X4
  • Platform Layout:
    Open
  • Fuel Level Warning Type:
    Gauge
  • PTO Type:
    Independent
  • PTO Horsepower (bhp):
    16.3
  • PTO Horsepower (kW):
    12.2
  • PTO Location(s):
    Rear / Mid
  • Rear PTO RPM:
    540
  • Mid PTO RPM:
    2200
  • Pump Capacity (gpm):
    6.5
  • Pump Capacity (lpm):
    24.6
  • Number of Optional Remote Valves:
    2
  • Rear 3-Point Hitch Category:
    Category 1
  • Rear 3-Point Hitch Lift Capacity (lbs):
    700
  • Rear 3-Point Hitch Lift Capacity (kgs):
    318
  • SysModelID:
    165020
  • MfrModelID:
    CS2210
  • Year:
    2025
  • Manufacturer:
    KIOTI
  • Model Name:
    CS Series
  • Trim Name:
    2210
  • Family Name:
    CS
  • Product Type:
    Tractors
  • Manufacturer Type:
    Utility
  • Generic Type (Primary):
    Compact Utility
  • Manufacturer Country:
    South Korea
  • Photo Name:
  • Major Revision Year:
    2016
  • Revision Status:
    Carryover
  • Competitor Code:
    TRC25CA0000
  • Introduction Year:
    2016
  • SysTrimId:
    589832
  • SysMakeId:
    850
  • IsCurrent:
    Yes
  • Historical ID:
    540886
  • Data Provider:
    CRS
  • Parent Company:
    Daedong - USA, Inc.
  • Display Name:
    CS Series 2210
  • Currency:
    US Dollars
  • Warranty (Months):
    24
  • Powertrain Warranty (Months):
    48
  • Steering Type:
    Power
  • Front Tire Width:
    8.5
  • Front Wheel Diameter:
    10
  • Rear Tire Width:
    12
  • Rear Wheel Diameter:
    12
  • Front Tire (Full Spec):
    18 x 8.5 -10
  • Rear Tire (Full Spec):
    26 x 12.00 -12
  • Tread Type:
    Agricultural
  • Wheels Composition:
    Steel
  • Front Wheel Width (in):
    18
  • Rear Wheel Width (in):
    26
