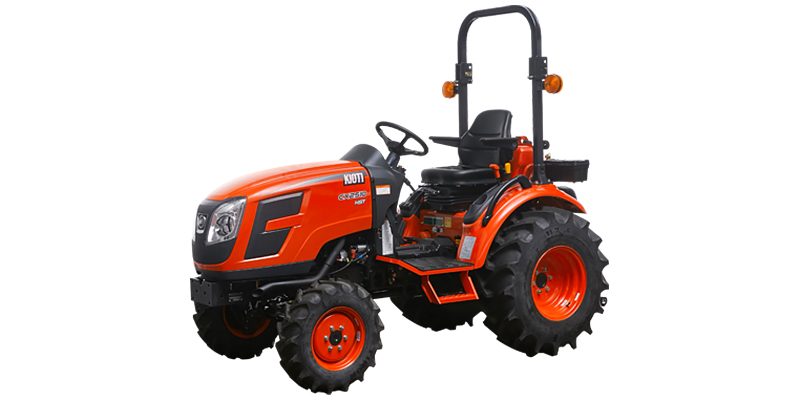

2025 KIOTI CX Series 2510

Check Availability
Hi, my name is and I'm interested in this 2025 KIOTI CX Series 2510 . I'm in the area and you can reach me at or by phone at .

Engine

  • Engine Brand Name:
    Daedong
  • Cylinders:
    3
  • Horsepower (bhp):
    24.5
  • Horsepower (kW):
    18.3
  • Horsepower RPM:
    2600
  • Cooling:
    Liquid
  • Displacement (ci):
    87
  • Fuel Type:
    Diesel
  • Displacement (l):
    1.4
  • Engine Model Code:
    3A165LWH-U
  • Aspiration:
    Natural

Brakes

  • Front Brake Type:
    Wet Disc
  • Rear Brake Type:
    Wet Disc

Carburetion

  • Carburetion Type:
    Fuel Injected

Dimensions

  • Length (in):
    109.1
  • Length (mm):
    2790
  • Width (in):
    49.4
  • Width (mm):
    1256
  • Height (in):
    82.8
  • Height (mm):
    2103
  • Wheelbase (in):
    59.8
  • Wheelbase (mm):
    1520
  • Turning Radius (ft):
    9
  • Ground Clearance (in):
    13.4
  • Ground Clearance (mm):
    340
  • Front Tread Width (in):
    38.1
  • Front Tread Width (mm):
    968
  • Rear Tread Width (in):
    37.4
  • Rear Tread Width (mm):
    951
  • Length (ft):
    9.09
  • Length (ft/ft):
    9
  • Length (ft/in):
    1.1
  • Turning Radius (m):
    2.75

Other

  • Fuel Capacity (gal):
    6.6
  • Fuel Capacity (l):
    25
  • Differential Lock Location:
    Rear
  • Driveline Type:
    4X4
  • Platform Layout:
    Open
  • Fuel Level Warning Type:
    Gauge
  • PTO Type:
    Independent
  • PTO Horsepower (bhp):
    19.3
  • PTO Horsepower (kW):
    14.4
  • PTO Location(s):
    Mid
  • Rear PTO RPM:
    540
  • Pump Capacity (gpm):
    11.3
  • Pump Capacity (lpm):
    42.9
  • Number of Optional Remote Valves:
    1
  • Rear 3-Point Hitch Category:
    Category 1
  • Rear 3-Point Hitch Lift Capacity (lbs):
    1203
  • Rear 3-Point Hitch Lift Capacity (kgs):
    546
  • SysModelID:
    165034
  • MfrModelID:
    CX2510
  • Year:
    2025
  • Manufacturer:
    KIOTI
  • Model Name:
    CX Series
  • Trim Name:
    2510
  • Family Name:
    CX
  • Product Type:
    Tractors
  • Generic Type (Primary):
    Compact Utility
  • Manufacturer Country:
    South Korea
  • Photo Name:
  • Major Revision Year:
    2020
  • Revision Status:
    Carryover
  • Competitor Code:
    TRC25CC0000
  • Introduction Year:
    2020
  • SysTrimId:
    589903
  • SysMakeId:
    850
  • IsCurrent:
    Yes
  • Historical ID:
    540891
  • Data Provider:
    CRS
  • Parent Company:
    Daedong - USA, Inc.
  • Display Name:
    CX Series 2510
  • Currency:
    US Dollars
  • Warranty (Months):
    24
  • Powertrain Warranty (Months):
    48
  • Steering Type:
    Power
  • Front Tire Width:
    7
  • Front Wheel Diameter:
    12
  • Rear Tire Width:
    11.2
  • Rear Wheel Diameter:
    16
  • Front Tire (Full Spec):
    7 - 12
  • Rear Tire (Full Spec):
    11.2 - 16
  • Tread Type:
    Agricultural
  • Wheels Composition:
    Steel
